PPS ( Polyphenylene sulfide )
PPS is a crystalline resin with very high thermal resistance ( continuous use temperature 220℃ ). Other advantages include mechanical strength, stiffneess, flame retardant, chemical resistace, as well as favorable electrical properties and dimensional stability. Thanks to these properties, the market for thiss product is rapidly expanding. Major application include electrical and electronic components, electrical household appliance parts, automotive parts, mechanical parts ( chimical pumps and similar ), and semi-conductor and LCD manufacturing equipment parts.
ㆍCharacteristics ㆍApplications
  • - Low linear expansion coefficient and water absorption
  • - Excellent restance against chemicals, including both organic and inorganic acid/alkari
  • - Continuous use temperature even at 220℃
  • - High strength and stiffness, superior fatique resistance
  • - Stable dielectric constant and loss in wide frequency band
  • - Electrical mock-up components
  • - Semi-conductor and LCD electrical components
  • - Automotive parts
  • - Base material in the other industries

치수

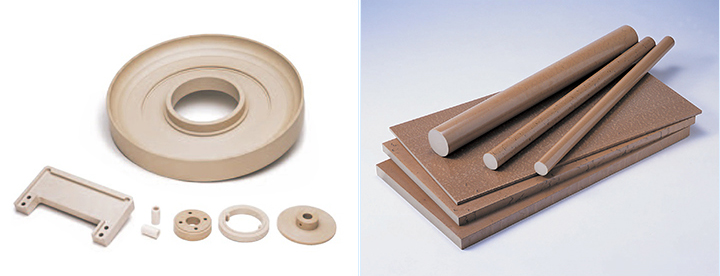

판 Sheet & Plates
Thickness
(mm)		 Weight ( Kg/sheet )
W 500mm x L 1000mm
Natural GF 40%
10 6.75 7.95
15 10.13 11.93
20 13.50 15.90
30 20.25 23.85
40 27.00 31.80
50 33.75 39.75
  • * Dimension and weight can be varied by tolerance in the specification.
  • * Customized size available upon request.
