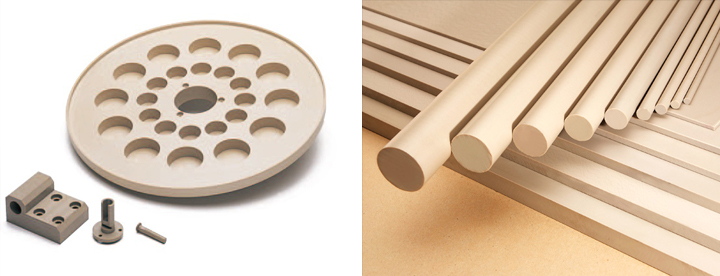

PEEK (Polyether ether ketone)
PEEK is a crystalline resin with properties that are not found in conventional materials. In particular, it can withstand at very high temperaturen ( continuous use temperature 260℃ ) and is highly flame resistance, with very low emission of smoke and corrosive gases when burning. PEEK is also unaffected by hot water and chemicals. Major application includes semi-conductor and LCD manufacturing equipment parts, testing equipment parts, medical equipment parts.
ㆍCharacteristics ㆍApplications
  • - Execellent high heat resistance(continuous use temperature 200~260℃ under steam)
  • - Superior chemical resistance at high temperature
  • - Highly flame resistance and very low of emission of smoke and toxic gas when burning
  • - Electrical mock-up parts
  • - Semi-conductor equipment components
  • - LCD manufacturing equipment components
  • - Inspection equipment parts
  • - Medecal device parts

Standard Dimension Sheet & Plates Stick Sheet & Plates
Thickness
(mm)		 Thickness tolerance
(mm)		 Weight ( Kg/sheet ) external diameter
tolerance
(mm)		 Weight ( Kg/sheet )
W 610mm x L 1000mm L 1000mm
Natural Natural
5 +0.2 ~ +1.2 4.179 +0.1 ~ +0.9 0.027
6 5.014 0.039
8 6.686 +0.2 ~ +1.0 0.069
10 +0.2 ~ +1.5 8.357 0.108
12 10.028 0.155
16 13.371 0.275
20 16.714 +0.2 ~ +1.5 0.430
25 20.893 0.672
30 25.250 0.968
35 +0.2 ~ +2.0 29.250 1.317
40 33.428 1.721
45 37.607 2.187
50 41.785 2.689
55 45.964 3.253
60 50.142 +0.5 ~ +2.5 3.872
65 * * 4.544
70 * * 5.270
80 * * 6.883
90 * * 8.711
100 * * 10.755
110 * * 13.013
120 * * 15.486
130 * * 18.175
140 * * 21.079
150 * * 24.198
160 * * 27.532
180 * * 34.845
190 * * 38.824
200 * * 43.018
  • * Dimension and weight can be varied by tolerance in the specification.
  • * Customized size available upon request.
