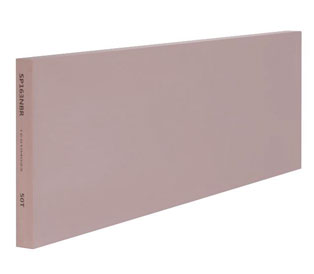

SP-163 / NBR
SP-163 is polyurethane board for master modeling and exhibits superior surface roughness, easy machinable, good dimensional stability product. As it is also expandable type of board, uniformity of the cell structure contributes to deformation resistance during machining process. As well as SP-150, low dust emission board thanks to characteristics of polyurethane mophology with no odour.
Mechanical Properties ( At 25℃ atmosphere condition )
Item Test method Unit Result
Color - - brown
Density ISO 1183 g/㎤ 0.6, ±0.02
Shore D hardness ISO 868 - 62, ±5
CTE ISO 11359 10-6K-1 65
Tg ISO 11359 ℃ 114
Compressive strength ISO 604 MPA 21
Tensile strength ISO 527 MPA 20.8
Impact resistance(Charpy) ISO 179 KJ/㎡ -
Flexural strength ISO 178 MPA 25.7
Flexural modulus ISO 178 MPA 976

* Technical statements and recommendations refer to current standard of technique and are based on our own experiances. Further development and improvements are reserved. Due to the variety of processing possibilities own experiments are recommended to optimise results.

Applications
- Master modeling materials
- Automotive interior and exterior design 		- Various design model for automotive
- Styro form models
Standard dimension
- 1,500 x 500 x 30 mm
- 1,500 x 500 x 50 mm
* Customized size available upon request. 		- 1,500 x 500 x 75 mm
- 1,500 x 500 x 100 mm
