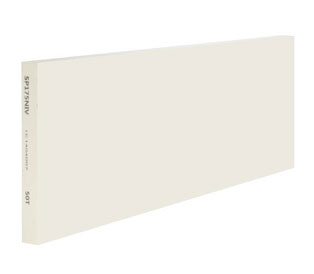

SP-175 / NGR, NIV
Our SP-175 board is suitable for automotive light weight checking fixture and tooling mould. Low coefficient of thermal expansion in wide temperature range with uniform cell structure can be possible to apply in severe environmental circumstances. Strictly controlled hardness and density gives work-pieces good surface roughness while control of elasticity enables engineer to do precise machining. This SP-175 has widely been used in Checking Fixture, gauge and vacuum forming mold.
Mechanical Properties ( At 25℃ atmosphere condition )
Item Test method Unit Result
Color - - ivory/gray
Density ISO 1183 g/㎤ 0.9, ±0.02
Shore D hardness ISO 868 - 75, ±2
CTE ISO 11359 10-6K-1 48
Tg ISO 11359 ℃ 95
Compressive strength ISO 604 MPA 51
Tensile strength ISO 527 MPA 37
Impact resistance(Charpy) ISO 179 KJ/㎡ -
Flexural strength ISO 178 MPA 50
Flexural modulus ISO 178 MPA 2149

* Technical statements and recommendations refer to current standard of technique and are based on our own experiances. Further development and improvements are reserved. Due to the variety of processing possibilities own experiments are recommended to optimise results.

Applications
- Press checking jig
- Injection checking jig
- Vacuum forming, deep-draw dies 		- foam mould
- Casting mold

Standard dimension
- 1,500 x 500 x 30 mm
- 1,500 x 500 x 50 mm
* Customized size available upon request. 		- 1,500 x 500 x 75 mm
- 1,500 x 500 x 100 mm
