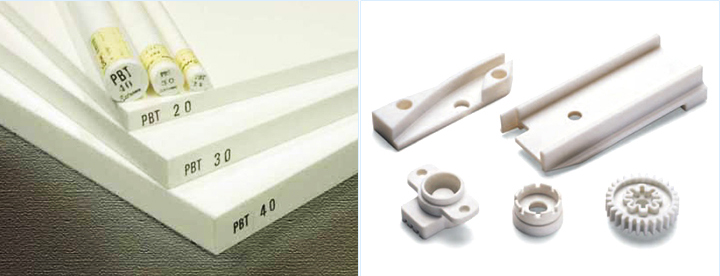

PBT ( Polybutylene Terephthalate )
This tough and durable material is the latest addition to the family of engineering plastics. It has good thermal aging restance and will retain good mechanical properties also at high temperatures. Electrical property is excellent in wide range of  temperature and low water absorption ensures good weather resistance, and resistance to chemicals is also assured, providing a good balance of desirable qualities.


ㆍCharacteristics ㆍApplications
  • - Continuous use possible at temperatures of 120 ~ 140℃
  • - Good electrical properties
  • - Low water absorption results in high dimensional stability
  • - Electrical mock-up parts
  • - Electronical parts
  • - Automotive parts

Standard Dimension
Sheet & Plates
Thickness
(mm)		 Weight ( (kg/sheet)
W 500mm x L 1000mm
Natural GF 30%
10 6.6 7.7
20 13.1 15.3
30 19.7 23.0
40 26.2 30.6
50 32.8 38.3
60 39.3 45.9
80 52.4 61.2
100 65.5 76.5
  • * Dimension and weight can be varied by tolerance in the specification.
  • * Customized size available upon request.
