PC ( Poly Carbonate )

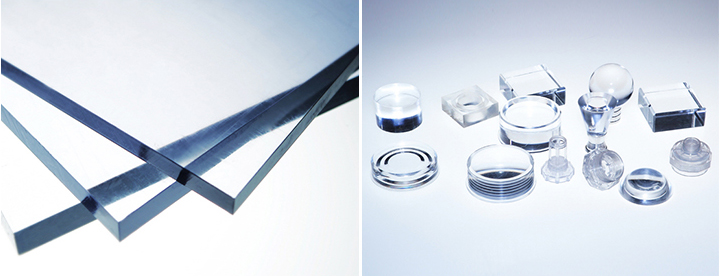

SP Polymer has provided advanced and high stiff poly carbonate sheets and rods to customers. Our polycarbonate sheets and rods exhibit superior heat resistance up to 136℃ with acid resistance and low water absorption. Also, due to excellent electric insulation property, it has widely been used in electronic industry.
ㆍCharacteristics ㆍApplications
  • - High mechanical strength
  • - High impact strength under low temperature
  • - Maintaining stiffness at widely elevated temperature
  • - Superior dimentional stability ( Low water absorption and Coefficient of thermal expansion ) ㅇ Non toxic ( For Food grade )
  • - Non toxic ( For Food grade )
  • - Higher heat resistance and impact strength than Acrylic product
  • - Electronic mock-up parts
  • - Precise machining components
  • - Medical device parts
  • - Electrical insulation parts

Standard Dimension
Sheet & Plates
Thickness
(mm)		 Thickness tolerance
(mm)		 (EA/sheet) Weight (Kg/sheet)
Natural(clear) Black GF20 (BLACK)
1,000 x 2,000 610 x 1000
0.5 * * * *
1 * * * *
1.5 * * * *
2 * * * *
3 * * * *
4 * * * *
5 * * 3.87 *
6 * * * *
8 * * 6.20 *
10 * * 7.75 8.60
12 * * * *
15 +0.1 ~ +2.0 * 11.62 11.62 12.90
20 * 15.49 15.49 17.20
25 * 19.37 19.37 21.50
30 +1.5 ~ +4.0 * 23.24 23.24 25.80
35 * 27.11 27.11 30.10
40 * 30.99 30.99 34.40
45 * 34.86 34.86 38.70
50 * 38.74 38.74 43.01
60 +1.0 ~ +5.0 * 46.48 46.48 51.61
70 * 54.23 54.23 60.21
80 * 61.98 61.98 68.81
100 +1.0 ~ +6.0 * 77.47 77.47 86.01
  • * Dimension and weight can be varied by tolerance in the specification.
  • * Customized size available upon request.
