MC ( Casting nylon )
As MC has unique abrasion resistance with combination of various mechanical properties, it has provided various advance. essentially, light weight characteristic of MC with such properties has provided customers with excellent choice as counter plastic for metal in various industries. Our MC having various grades, high light weight and superior mechanical characteristics has been provided.
ㆍCharacteristics ㆍApplications
  • - Excellent mechanical strength
  • - Favorable chemical resistance
  • - Good abrasion resistance and self-lubrication
  • - Favorable mechanical machining and heat resistance
  • - Electronical mock-up parts
  • - Parts for architextural, industrial, transportation, steel industries

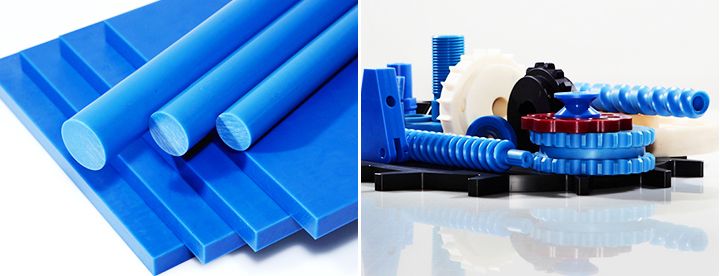

  • - Base material for wheel, gear, roller, bushing, liner, guide

Standard Dimension
Sheet & Plates
Thickness
(mm)		 Thickness tolerance
(mm)		 Weight ( Kg/sheet )
W 600mm x L 1200mm W 1000mm x L 2000mm
5 +0.1 ~ +1.0 4.32 12.00
6 5.18 14.40
8 +0.1 ~ +2.0 6.91 19.20
10 8.64 24.00
12 10.37 28.80
15 12.96 36.00
20 17.28 48.00
25 21.60 60.00
30 +0.3 ~ +3.5 25.92 72.00
35 30.24 84.00
40 34.56 96.00
45 38.88 108.00
50 43.20 120.00
60 +0.3 ~ +4.5 51.84 144.00
70 60.48 168.00
80 +0.3 ~ +5.5 69.12 192.00
90 77.76 216.00
100 86.40 240.00
  • * Dimension and weight can be varied by tolerance in the specification.
  • * Customized size available upon request.
