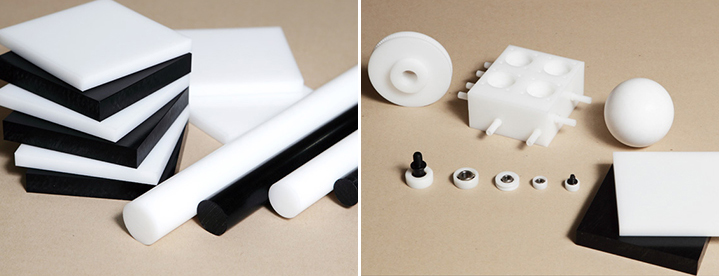

POM ( Poly oxymethylene acetal )
POM exhibits most superior stiffness of all thermo engineering plastics. Acetal resin characterizes superior resistance against fatique, water absorption, solvent and chemical, including excellent electrical insulation property. Semi-crystalline structure of acetal has contributed advance to engineering and CNC machining industry.
ㆍCharacteristics ㆍApplications
  • - High mechanical strength
  • - Excellent elastic restoring force
  • - High impact strength even at low temperature
  • - Superior dimensional stability
  • - Good machining characteristic, abrasion resistance
  • - Electronical mock-up parts
  • - Parts for industrial bearing
  • - Parts for industrial structure
  • - Industrial gear and roller parts

Standard Dimension
Sheet & Plates
Thickness
(mm)		 Thickness tolerance
(mm)		 Weight (Kg/sheet)
W 610mm x L 1000mm W 610mm x L 1500mm
5 +0.1 ~ +1.0 4.51 6.77
6 5.42 8.13
8 +0.1 ~ +2.0 7.22 10.83
10 9.03 13.54
12 10.83 16.25
15 13.54 20.31
20 18.06 27.08
25 22.57 33.86
30 +1.5 ~ +4.0 27.08 40.63
35 31.60 47.40
40 36.11 54.17
45 40.63 60.94
50 45.14 67.71
60 +1.0 ~ +5.0 54.17 81.25
70 63.20 94.79
80 +1.0 ~ +6.0 72.22 108.34
90 81.25 121.88
100 90.28 135.42
  • * Dimension and weight can be varied by tolerance in the specification.
  • * Customized size available upon request.
