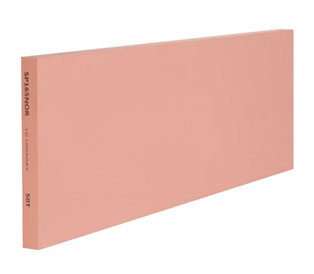

SP-165 / NBR, NOR
SP-165 is ourstanding polyurethane modeling board of Sepoong Polymer. With superior surface roughness and homogeneous density distribution cross the board, it gives merit to minimize deformation of work-pieces during CNC machining. Not only high mechanical strength but also optimal elastic properties are our integrated core technology. SP-165 has widely been used in various applications such as Tire mold, Master modeling for interior and Exterior automotive design, Shoes mold.
Mechanical Properties ( At 25℃ atmosphere condition )
Item Test method Unit Result
Color - - brown
Density ISO 1183 g/㎤ 0.7, ±0.02
Shore D hardness ISO 868 - 65, ±2
CTE ISO 11359 10-6K-1 64
Tg ISO 11359 ℃ 119
Compressive strength ISO 604 MPA 33
Tensile strength ISO 527 MPA 27
Impact resistance(Charpy) ISO 179 KJ/㎡ -
Flexural strength ISO 178 MPA 39.3
Flexural modulus ISO 178 MPA 1395

* Technical statements and recommendations refer to current standard of technique and are based on our own experiances.
Further development and improvements are reserved. Due to the variety of processing possibilities own experiments are recommended to optimise results.

Applications
- Master modeling for interior and exterior
- Design and vacuum forming
- Press checking jig, Injection checking jig 		- Tire mold, Shoes mold
- General design
Standard dimension
- 1,500 x 500 x 30 mm
- 1,500 x 500 x 50 mm
* Customized size available upon request. 		- 1,500 x 500 x 75 mm
- 1,500 x 500 x 100 mm
