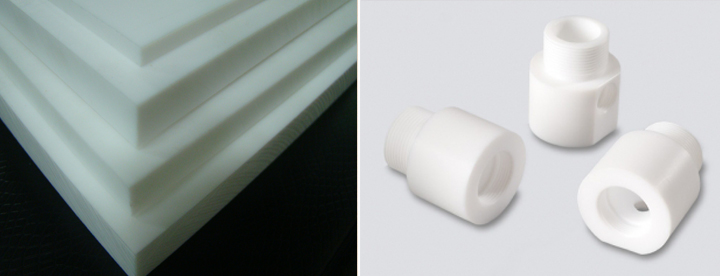

TEFLON ( Polytetra Fluoro Ethylene )
As PTFE is fluoro carbon type polymer, it exhibits excellent chemical resistance and high purity. PTFE being good self-lubrication with low friction coefficient has widely been used in high temperature sealing insulation, bearing for Semi-conductor, aviation and chemical process industry. Unlike the other engineering plastics, PTFE can widely be used in various temperature range.
ㆍCharacteristics ㆍApplications
  • - Lowest friction efficient
  • - Workable even at broad temperature range
  • - Excellent chemical resistance
  • - Superior insulation characteristic
  • - Prone to compressive and tensile strength
  • - Electronical mock-up parts
  • - Semi-conductor equipment components
  • - Aviation parts
  • - Base material for insulation

Standard Dimension
Sheet & Plates
Thickness
(mm)		 Weight ( Kg/sheet )
W 300mm x L 1000mm W 300mm x L 300mm W 300mm x L 500mm
0.5 0.36 * *
1 0.72 * *
1.5 1.08 * *
2 1.44 * *
3 2.16 * *
4 * 0.86 *
5 * 1.08 3.00
6 * 1.30 3.60
8 * 1.73 4.80
10 * 2.16 6.00
12 * 2.59 7.20
15 * 3.24 9.00
20 * 4.32 12.00
25 * 5.40 15.00
30 * 6.48 18.00
35 * 7.56 21.00
40 * 8.64 24.00
50 * 10.80 30.00
60 * 12.96 36.00
70 * 15.12 42.00
80 * 17.28 48.00
90 * 19.44 54.00
100 * 21.60 60.00
  • * Dimension and weight can be varied by tolerance in the specification.
  • * Customized size available upon request.
